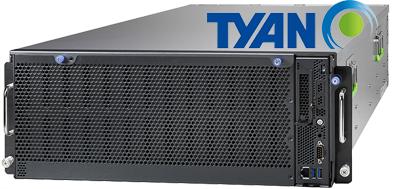

Tyan Storage Servers

The Tyan servers in this range have been expertly designed and built to excel for use as storage servers.

In the current climate storage is more important than ever before as the amount of data generated by businesses has sky-rocketed. Broadberry Tyan storage servers provide effective, efficient and reliable storage.

Tyan Storage Servers are:
  • Capable Of Storing Massive Amounts Of Data
  • Flexible and Scalable
  • Built To Excel In Your Data Centre
  • Configured To Meet Your Unique Needs
NVMe, 12Gb/s SAS and SATA logos.

TYAN GT86CB5630 (B5630G86CV12)

High Density Storage for Distributed Databases, 12x Internal easy-swap 3.5" SATA 6G Drive Bays, 2x Internal 2.5" SATA 6G Drive Bays, Up to 4x NVMe M.2 ports via optional carrier card

U Size:
1U
Processor Family:
2nd Gen Intel Xeon Scalable Processors
CPU Sockets:
Single Processor
Maximum RAM:
1.5 TB
Integrated Features:
Realtek RTL8211E
Drives:
SATA Support
Expansion Slots:
1x PCIe
Features:
High Density Storage
Configure From: $1,878
Configure
TYAN GT86CB5630 (B5630G86CV12R)

High Density Storage for Distributed Databases, Redundant Power Option, 12x Internal easy-swap 3.5" SATA 6G Drive Bays, Up to 4x NVMe M.2 ports via optional carrier card

U Size:
1U
Processor Family:
2nd Gen Intel Xeon Scalable Processors
CPU Sockets:
Single Processor
Maximum RAM:
1.5 TB
Integrated Features:
Realtek RTL8211E
Drives:
SATA Support
Expansion Slots:
1x PCIe
Features:
High Density Storage
Configure From: $2,452
Configure
TYAN Transport SX GT62FB8026 (B8026G62FV10HR-LE)

16 DIMM Single Socket EPYC™ Storage Server. 10 Hot-Swap 2.5" Drive Bays. 2 PCIe x16 + 2 NVMe M.2 slots. AST2500 BMC with Redfish support.

U Size:
1U
Processor Family:
AMD EPYC 7002 Series
CPU Sockets:
Single Processor
Maximum RAM:
2 TB
Drives:
SATA Support, SAS Support
Expansion Slots:
2x PCIe
Configure From: $2,884
Configure
TYAN Thunder SX TN70EB7106 (B7106T70EV12HR)

Mainstream Dual Socket Xeon Server, 12x Front Hotswap 3.5"/2.5" SATA Drive bays, 2x Rear Hotswap 2.5" SATA Drive bays

U Size:
2U
Processor Family:
2nd Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
2 TB
Integrated Features:
Realtek RTL8211E
Drives:
SATA Support
Expansion Slots:
4x PCIe
Features:
(12) Front Hotswap 3.5"/2.5" SATA Drive bays
Configure From: $3,012
Configure
TYAN Thunder SX TN70EB7106 (B7106T70EV8E4HR)

Mainstream Dual Socket Xeon Server /w NVMe, 8x Front Hotswap 3.5" / 2.5" SATA Drive Bays, 4x Front Hotswap 3.5" / 2.5" NVMe Drive Bays, 2x Rear Hotswap 2.5" SATA Drive bays

U Size:
2U
Processor Family:
2nd Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
2 TB
Integrated Features:
Realtek RTL8211E
Drives:
SATA Support, NVME Support
Expansion Slots:
4x PCIe
Features:
(4) Front Hotswap 3.5" / 2.5" NVMe Drive Bays
Configure From: $3,370
Configure
TYAN Transport SX TN70E-B8026 (B8026T70EV10E4HR)

No Compromise Single-Socket Storage Server, Up to 6 PCIe slots, 2TB RAM, AST2500 BMC with Redfish support.

U Size:
2U
Processor Family:
AMD EPYC 7002 Series
CPU Sockets:
Single Processor
Maximum RAM:
2 TB
Drives:
SATA Support, NVME Support
Expansion Slots:
6x PCIe
Configure From: $3,437
Configure
TYAN Thunder SX GT93-B7106 (B7106G93V13R)

1U Density Storage Server with Dual Cascade Lake Refresh CPU. Dual Socket Intel Xeon Scalable Processor. Low Profile PCIe x16 slot. (1+1) 650W RPSU.

U Size:
1U
Processor Family:
2nd Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
2 TB
Drives:
SATA Support
Expansion Slots:
1x PCIe
Configure From: $3,669
Configure
TYAN Transport SX TN70A-B8026 (B8026T70AV26HR-LE)

2U1S 26 SATA Storage Server. 18x 2.5" SATA + 8x 2.5" drive bays. 2 NVMe/SATA M.2 ports for boot drives.

U Size:
2U
Processor Family:
AMD EPYC 7002 Series
CPU Sockets:
Single Processor
Maximum RAM:
2 TB
Drives:
SATA Support
Expansion Slots:
3x PCIe
Configure From: $3,745
Configure
TYAN Transport SX TN70A-B8026 (B8026T70AV2E24HR)

No Compromise 1P All-NVMe Storage Server Barebone, AMD EPYC 7002, 24x 2.5" NVMe Drive Bays. AST2500 BMC with Redfish support.

U Size:
2U
Processor Family:
AMD EPYC 7002 Series
CPU Sockets:
Single Processor
Maximum RAM:
2 TB
Drives:
SATA Support, NVME Support
Expansion Slots:
1x PCIe
Configure From: $3,745
Configure
TYAN Transport SX TN70A-B8026 (B8026T70AV16E8HR)

No Compromise Single-Socket Hybrid Storage Server. AST2500 BMC with Redfish support.

U Size:
2U
Processor Family:
AMD EPYC 7002 Series
CPU Sockets:
Single Processor
Maximum RAM:
2 TB
Drives:
SATA Support, NVME Support
Expansion Slots:
6x PCIe
Configure From: $3,745
Configure
Tyan Transport SX TN70A-B8026 (B8026T70AV18E8HR)

No Compromise Single-Socket Hybrid Storage Server. AMD EPYC 7002. 16x SATA Drive Bays, 8x NVMe Drive Bays. AST2500 BMC with Redfish support.

U Size:
2U
Processor Family:
AMD EPYC 7002 Series
CPU Sockets:
Single Processor
Maximum RAM:
2 TB
Drives:
SATA Support, NVME Support
Expansion Slots:
3x PCIe
Configure From: $3,745
Configure
TYAN Transport SX TN70A-B8026 (B8026T70AV8E16HR)

2U1S 10 SATA + 16 NVMe Hybrid Storage Server. 4 FH/FL + 1 HH/HL PCIe x8 slots. 2 NVMe/SATA M.2 ports for boot drives.

U Size:
2U
Processor Family:
AMD EPYC 7002 Series
CPU Sockets:
Single Processor
Maximum RAM:
2 TB
Drives:
SATA Support, NVME Support
Expansion Slots:
3x PCIe
Configure From: $3,745
Configure
TYAN TN70AB7106 (B7106T70AV26HR)

26x 2.5” SATA 6G Hot-swap Drives,5x PCIe x8, 1x NVMe M.2 slots

U Size:
2U
Processor Family:
2nd Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
2 TB
Integrated Features:
Realtek RTL8211E
Drives:
SATA Support
Expansion Slots:
9x PCIe
Features:
24 hot-swap 2.5" SATA 6G drive bays (@ front)
Configure From: $3,971
Configure
TYAN FT70B7100 (B7100F70V26HR)

4U Dual Socket Xeon SP Storage Server, 24x 3.5" Hot-swap SAS 12G / SATA 6G Drive Bays at front, 2x 2.5" Hot-swap SAS 12G / SATA 6G Drive Bays at rear.

U Size:
4U
Processor Family:
2nd Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
1.5 TB
Integrated Features:
(2) GbE ports (1 port shared with IPMI) Intel I350-AM2
Drives:
SATA Support
Expansion Slots:
6x PCIe
Features:
(24) 3.5" Hot-swap SAS 12G / SATA 6G Drive Bays at front
Configure From: $4,014
Configure
TYAN GT90B7113 (B7113G90V12E4HR)

1U Storage Server with Service Drawer, HDD bays mounted to a drawer for easy service, 12x 3.5" SATA HDD Bays (/w 2.5" SSD support), 4x 2.5" U.2 NVMe Bays

U Size:
1U
Processor Family:
2nd Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
2 TB
Integrated Features:
Realtek RTL8211E
Drives:
SATA Support, NVME Support
Expansion Slots:
1x PCIe
Features:
HDD bays mounted to a drawer for easy service
Configure From: $4,114
Configure
TYAN TN70AB7106 (B7106T70AU24V2HR)

Up to 24x hot-swap 2.5" SAS 12G Drive bays, 2x Hot-swap 2.5" SATA 6G Drive bays,5x PCIe x8 slots, 1x NVMe M.2 slot

U Size:
2U
Processor Family:
2nd Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
2 TB
Integrated Features:
(2) GbE ports / (1) GbE dedicated for IPMI, Intel I210-AT
Drives:
SATA Support, SAS Support
Expansion Slots:
9x PCIe
Features:
24 hot-swap 2.5" SAS 12G drive bays (@ front)
Configure From: $4,114
Configure
TYAN GT62HB7106 (B7106G62HE10HR)

1U All-Flash Dual Socket Storage Server, Up to 10 switchless HS NVMe U.2 drive bays, 2x PCIe x16 Slots (HH/HL)

U Size:
1U
Processor Family:
2nd Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
2 TB
Integrated Features:
(2) GbE ports / (1) GbE dedicated for IPMI, Intel I210-AT
Drives:
SATA Support, NVME Support
Expansion Slots:
2x PCIe
Features:
10 switchless HS NVMe U.2 drive bays
Configure From: $4,143
Configure
TYAN GT90B7113 (B7113G90U12E4HR)

1U Storage Server with Service Drawer, powered by dual Intel Xeon SP, has a maximum RAM capacity of 2TB and can be configured with 12x 3.5” SAS/SATA drives and 4x 2.5” NVMe/SATA drives.

U Size:
1U
Processor Family:
2nd Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
1.5 TB
Integrated Features:
Realtek RTL8211E
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
1x PCIe
Features:
HDD bays mounted to a drawer for easy service
Configure From: $4,401
Configure
TYAN Transport SX TN70AB8026 (B8026T70AE24HR)

No Compromise 1P All-NVMe Storage Server. 24x Front Hot-Swap 2.5" NVMe Drive Bays. AST2500 BMC with Redfish support.

U Size:
2U
Processor Family:
AMD EPYC 7002 Series
CPU Sockets:
Single Processor
Maximum RAM:
2 TB
Drives:
NVME Support
Configure From: $5,206
Configure
TYAN Transport SX TS65-B8036 (B8036T65V12E2HR-LE)

2nd Gen AMD EPYC™ (ROME) Hybrid Storage Server. PCIe Gen 4.0 support. AST2500 BMC with Redfish support.

U Size:
2U
Processor Family:
AMD EPYC 7002 Series
CPU Sockets:
Single Processor
Maximum RAM:
2 TB
Drives:
SATA Support, NVME Support
Expansion Slots:
6x PCIe
Configure From: $5,214
Configure
Tyan Transport HX TN76A-B8242 (B8242T76AV2E24HR-2V)

32-DIMM Dual Socket EPYC. Configure with 24 switchless NVMe U.2 drives. Dual onboard 25GBase SFP28 LAN ports. AST2500 BMC with Redfish support.

U Size:
2U
Processor Family:
AMD EPYC 7002 Series
CPU Sockets:
Dual Processor
Maximum RAM:
4 TB
Drives:
SATA Support, NVME Support
Expansion Slots:
1x PCIe
Configure From: $5,638
Configure
TYAN Transport HX TN76A-B8242 (B8242T76AV18E8HR-2V)

32-DIMM Dual Socket EPYC. Dual onboard 25GBase SFP28 LAN ports. AST2500 BMC with Redfish support.

U Size:
2U
Processor Family:
AMD EPYC 7002 Series
CPU Sockets:
Dual Processor
Maximum RAM:
4 TB
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
10x PCIe
Configure From: $5,638
Configure
TYAN Transport HX TN76A-B8242 (B8242T76AV26HR-2V)

32-DIMM Dual Socket EPYC Server. Dual 25GBase SFP28. AST2500 BMC with Redfish support.

U Size:
2U
Processor Family:
AMD EPYC 7002 Series
CPU Sockets:
Dual Processor
Maximum RAM:
4 TB
Drives:
SATA Support
Expansion Slots:
9x PCIe
Configure From: $5,638
Configure
TYAN TS65B8036 (B8036T65V10E4HR)

2nd Gen AMD EPYC™ (ROME) Storage Server, 12x Front Hot-Swap 3.5" SATA 6G Drive Bays, 4x Front Hot-Swap U.2 NVMe Drive Bays, 2x Rear Hot-Swap 2.5" SATA Drive Bays

U Size:
2U
Processor Family:
AMD EPYC 7003 Series
CPU Sockets:
Single Processor
Maximum RAM:
4 TB
Integrated Features:
Realtek RTL8211E
Drives:
SATA Support, NVME Support
Expansion Slots:
6x PCIe
Features:
12 Front Hot-Swap 3.5" SATA 6G Drive Bays
Configure From: $6,207
Configure
TYAN Transport SX TS65A-B8036 (B8036T65AV28HR-LE)

2U1S 28 SATA Storage Server. 4 FH/FL + 1 HH/HL PCIe Gen.4x8 slots. Single Socket AMD EPYC 7002 Processor.

U Size:
2U
Processor Family:
AMD EPYC 7003 Series
CPU Sockets:
Single Processor
Maximum RAM:
2 TB
Drives:
SATA Support
Expansion Slots:
5x PCIe
Configure From: $6,389
Configure
TYAN Transport SX TS65A-B8036 (B8036T65AV4E24HR)

2U1S 4 SATA + 24 NVMe Hybrid Storage Server. 4 FH/FL + 1 HH/HL PCIe Gen.4x8 slots. Single Socket AMD EPYC 7002 processor.

U Size:
2U
Processor Family:
AMD EPYC 7003 Series
CPU Sockets:
Single Processor
Maximum RAM:
2 TB
Drives:
SATA Support, NVME Support
Expansion Slots:
5x PCIe
Configure From: $6,389
Configure
TYAN Transport SX TS65-B8253 (B8253T65V10E4HR)

2U2S Storage Server, 4 NVMe U.2 + 10 SATA. (2) 1000Base-T + (1) 1000Base-T dedicated IPMI ports. (7) PCIe Gen.4 slots. AST2500 BMC with Redfish support

U Size:
2U
Processor Family:
AMD EPYC 7003 Series
CPU Sockets:
Dual Processor
Maximum RAM:
2 TB
Drives:
SATA Support, NVME Support
Expansion Slots:
7x PCIe
Configure From: $6,733
Configure
TYAN Transport SX TS65-B8253 (B8253T65V10E4HR-2T)

2U2S Storage Server, 4 NVMe U.2 + 10 SATA.. 2x 10GBase-T LAN + Dual 1000Base-T + 1000Base-T dedicated IPMI port. 7 PCIe Gen.4slots. AST2500 BMC with Redfish support.

U Size:
2U
Processor Family:
AMD EPYC 7003 Series
CPU Sockets:
Dual Processor
Maximum RAM:
2 TB
Drives:
SATA Support, NVME Support
Expansion Slots:
7x PCIe
Configure From: $6,733
Configure
TYAN Transport SX TS65A-B8036 (B8036T65AV12E16HR)

2U1S 12 SATA + 16 NVMe Hybrid Storage Server. 4 FH/FL + 1 HH/HL PCIe Gen.4x8 slots. Single Socket AMD EPYC 7002 Processor.

U Size:
2U
Processor Family:
AMD EPYC 7003 Series
CPU Sockets:
Dual Processor
Maximum RAM:
2 TB
Drives:
SATA Support, NVME Support
Expansion Slots:
6x PCIe
Configure From: $7,182
Configure
3.5" Drives NVMe Drives
TYAN Transport SX TS70-B8056 (B8056T70V8E6HR)

2U1S Storage Server, hybrid NVMe/SAS/SATA BP, 12 SFF. 2x FH/HL PCIe Gen 5.0 x16 slots. 12x SATA/4x NVMe Hybrid hot swap drive bays, 12000W Redundant power supply.

U Size:
2U
Processor Family:
AMD EPYC 9004 Series
CPU Sockets:
Single Processor
Maximum RAM:
3 TB
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
3x PCIe
Configure From: $9,058
Configure
3.5" Drives NVMe Drives 10Gb Lan
TYAN Transport SX TS70-B8056 (B8056T70V8E6HR-2T)

2U1S Storage Server, hybrid NVMe/SAS/SATA BP, 12 SFF. 2x FH/HL PCIe Gen 5.0 x16 slots. 12x NVMe hot swap drive bays, 1200W Redundant power supply. Dual 10GbE Base-T LAN.

U Size:
2U
Processor Family:
AMD EPYC 9004 Series
CPU Sockets:
Single Processor
Maximum RAM:
3 TB
Integrated Features:
(2) 10GbE ports, (1) GbE port dedicated for IPMI
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
3x PCIe
Network Controller:
Intel X710-AT2
Configure From: $9,372
Configure
2.5" Drives NVMe Drives
TYAN Transport SX TS70A-B8056 (B8056T70AE26HR)

2U1S Storage Server, NVMe BP. 1x FH/HL PCIe Gen 5.0 x16 slots. 26x NVMe hot swap drive bays, 1600W Redundant power supply.

U Size:
2U
Processor Family:
AMD EPYC 9004 Series
CPU Sockets:
Single Processor
Maximum RAM:
3 TB
Drives:
SATA Support, SAS Support, NVME Support
Expansion Slots:
1x PCIe
Configure From: $10,493
Configure
TYAN FA100B7118 (B7118F100V100HR)

4U 100 HDD Storage Server, 100x hot-swap 3.5" SATA 6G drive bays

U Size:
4U
Processor Family:
2nd Gen Intel Xeon Scalable Processors
CPU Sockets:
Dual Processor
Maximum RAM:
2 TB
Integrated Features:
Realtek RTL8211E
Drives:
SATA Support
Expansion Slots:
1x PCIe
Features:
100 hot-swap 3.5" SATA 6G drive bays
Configure From: $16,316
Configure

Call a Broadberry Storage & Server Specialist Now: +61 2 8551 2715

Have a Broadberry Expert Contact You:

Data storage is a massive issue for business in every sector, with many organisations having to handle workloads that deal with humongous amounts of data. A common example of this is video surveillance and high definition video distribution.

The Broadberry range of Tyan servers features solutions capable of storing giant amounts of data. The systems in this range, configurable with up to 100 hot-swap 3.5" SATA 6G drive bays, can satisfy any storage needs your business has.

An example of some of the applications these Tyan storage servers excel at:

  • Software Defined Storage
  • High Speed Data Streaming
  • Distributed Database Applications
  • Content Distribution
  • Enterprise Workloads
  • Object Storage
  • Virtualisation
TYAN storage server

This Broadberry range of Tyan servers features SATA, SAS and NVMe support. Each storage option has its own special advantages and this flexibility in choice allows you to configure your server with the most ideal parts.

SATA logo
SAS logo
NVMe logo

Configure your Tyan storage server with SATA hard drives for cold data where high IOPS are not as important as storage density/cost.

Much less likely to encounter read errors than SATA and bi-directional, configure your Tyan storage servers with a large range of SAS drive options for better performance.

NVMe is scorching fast, capable of reaching speeds much faster than SATA and SAS. Its also manages lower latency than SATA and SAS are capable of.


Throughout our 30 years as one of the leading providers of enterprise grade servers and storage solutions, we have supplied server technology to some of the largest organisations in the world including the likes of the BBC, ITV, Disney, Virgin, Toyota, Sky, NASA, Google and many more.

Our highly trained and knowledgeable Broadberry engineers have a lot of experience with Tyan servers. Every server undergoes an comprehensive 48 hour system test and is covered by a 3 year warranty.

Our powerful online configurator allows you to create your Tyan server to perfectly fit the needs and requirements of your business. With a wide array of features, hundreds of possible configuration combinations and a meticulous design process that optimises them directly for you, our servers are built to help your business thrive.

Broadberry Celebrating Over 30 Years.


Engineer performing test.Our Rigorous Testing

Before leaving our workshop, all Broadberry server and storage solutions undergo a rigorous 48 hour testing procedure. This, along with the high-quality industry leading components ensures all of our server and storage solutions meet the strictest quality guidelines demanded from us.


Broadberry professional.Un-Equaled Flexibility

Our main objective is to offer great value, high-quality server and storage solutions, we understand that every company has different requirements and as such are able to offer un-equaled flexibility in designing custom server and storage solutions to meet our clients' needs.

Trusted by the World's Biggest Brands

We have established ourselves as one of the biggest storage providers in the UK, and since 1989 supplied our server and storage solutions to the world's biggest brands. Our customers include:

NASA, BBC, ITV, SONY, SKY, Disney, Google logos.
