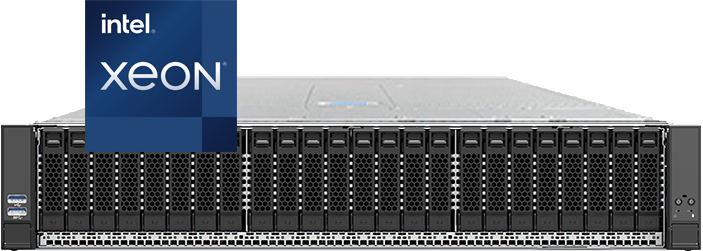

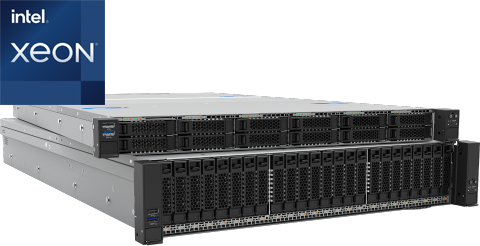

2U Intel Server Systems powered by the latest Intel 3rd Generation Xeon Scalable Processors deliver significantly enhanced performance and efficiency.
Featuring up to 40 powerful cores, 3rd Gen Intel Xeon Scalable processors are optimised for cloud, HPC, network, enterprise, security and IoT workloads.
3rd Generation Xeon Scalable Processor, PCIe Gen4, Intel Server management port - IPMI 2.0 & Redfish, optional redundant power supply
3rd Generation Xeon Scalable Processor, PCIe Gen4, Intel Server management port - IPMI 2.0 & Redfish, optional redundant power supply
3rd Generation Xeon Scalable Processor, PCIe Gen4, Intel Server management port - IPMI 2.0 & Redfish, optional redundant power supply
3rd Generation Xeon Scalable Processor, PCIe Gen4, Intel Server management port - IPMI 2.0 & Redfish, optional redundant power supply
3rd Generation Xeon Scalable Processor, PCIe Gen4, Intel Server management port - IPMI 2.0 & Redfish, optional redundant power supply
3rd Generation Xeon Scalable Processor, PCIe Gen4, Intel Server management port - IPMI 2.0 & Redfish, optional redundant power supply
3rd Generation Xeon Scalable Processor, PCIe Gen4, Intel Server management port - IPMI 2.0 & Redfish, optional redundant power supply
3rd Generation Xeon Scalable Processor, PCIe Gen4, Intel Server management port - IPMI 2.0 & Redfish, optional redundant power supply
2U Intel Server systems powered by Intel 3rd Gen Xeon Scalable processors provide hugely improved performance and efficiency. They feature up to 40 powerful cores per processor and are optimised for cloud, network, HPC, enterprise, security and IoT workloads.
Infrastructure flexibility is vital as businesses build both for the requirements of today and with future demands in mind. Intel 3rd Gen Xeon Scalable processors deliver the flexibility you require, are optimised for multi-cloud and AI and can serve a large number of workloads. Designed for the most in-demand workload requirements, 3rd Gen Xeon Scalable processors feature a balanced architecture with built-in acceleration and advanced security capabilities.
| Maximum Core Count Supported | Up to 40 |
| Base Frequency Supported | Up to 3.1 GHz |
| Maximum Single-Core Intel Turbo Boost Technology 2.0 Frequency Supported | Up to 4.3 GHz |
| Processor Cache Memory Support | Up to 38.5 MB of L3 Cache (1.375 MB/core) |
| Intel Ultra Path Interconnect (Intel UPI) | Six Intel UPI supported per processor (Up to 10.4 GT/s) |
| Processor Performance Support | Intel Turbo Boost 2.0 Technology, Intel Hyper-Threading Technology (Intel HT), Intel Speed Shift Technology, Enhanced Intel SpeedStep Technology |
| Intel Speed Select Technology (Intel SST) | Intel SST Core Power (SST-CP) and Intel SST Turbo Frequency (SST-TF) features are supported on select processors |
| Intel Deep Learning Boost | VNNI and bfloat16 supported |
| Intel Advanced Vector Extension 512 (Intel AVX-512) Support | Intel AVX-512 with up to 2 FMA support |
| Number of Processor Sockets Supported | 4 or 8 sockets |
| Thermal Design Point (TDP) | Supporting a range from 150W to 260W depending on customer needs and implementation |
| Socket Type | Socket P+ (4189 pins) |
| System Memory Support | 6 channels, Up to DDR4 3200 MT/s (1 DPC) with ECC support
12 DIMMs/socket, Support for 16Gb density DIMMs |
| Intel Optane Persistent Memory Support | Intel Optane Persistent memory 200 series supported on 4-socket systems only |
| Maximum DRAM System Memory Supported | Up to 4.5 TB per socket |
| Supported Chipsets | Intel C620A series chipsets, available with integrated Intel QuickAssist Technology |
| PCH I/O | PCI Express* 3 - Up to 20 lanes (8 GT/s)
USB* 3.0 - Up to 10 ports SATA* 3.0 - Up to 14 ports DMI - Up to 4 lanes, Gen 3 |
| Platform Manageability | Intel Server Platform Services (Intel SPS) and Intel Resource Director Technology (Intel RDT) |
| Storage Manageability | Intel Volume Management Device (Intel VMD) |
Certain 3rd Gen Intel Xeon Scalable processors support up to 28 cores per processor in 4 and 8-socket configurations, boasting increased performance, throughput and CPU frequencies over their previous-gen counterparts.
Up to 6 Intel UltraPath Interconnect (Intel UPI) channels enhance platform scalability and increase inter-CPU bandwidth for I/O-intensive workloads. 3rd Gen Intel Xeon Scalable processors deliver the ideal balance between enhanced throughput and energy efficiency.
Built-in workload and service acceleration.
Intel Deep Learning Boost (Intel DL Boost) is specifically built in for the flexibility to run demanding and complex AI workloads on the same hardware as your existing workloads.
All 3rd Gen Intel Xeon Scalable processors have int8 available. Vector Neural Network Instructions (VNNI) enhance inference workloads through maximising use of compute resources, enhancing cache utilisation and curtailing potential bandwidth bottlenecks.
Select 3rd Gen Intel Xeon Scalable processors have bfloat16 available, the industries very first x86 support of Brain Floating Point 16-bit (blfloat16) 5 delivers improved artificial intelligence inference and training performance with Intel Deep Learning Boost.
Intel Software Guard Extensions (Intel SGX) delivers fine grain data protection through application isolation in memory, completely independent of the OS or hardware configuration.
Intel Crypto Acceleration delivers built-in Vector AES-NI, Intel Secure Hash Algorithm Extensions, RSA/DH encryption protocols, Vector CLMUL and VPMADD52 instructions.
Intel Total Memory Encryptions provides full physical memory encryption support to improve data and VM protection.
Intel Platform Firmware Resilience (Intel PFR) utilises an Intel FPGA to safeguard, discover and correct, boasting NIST SP800-193 firmware resiliency. Platform firmware can be validated prior to execution, whilst runtime monitoring and filtering aid in safeguarding against manipulation. In the event of a compromise, Intel PFR delivers automated recovery within minutes.
Performance and throughput are boosted for the most computationally intensive tasks in applications like modelling and simulation, data compression, data analytics and machine learning, virtualisation and digital content creation.
3rd Gen Intel Xeon Scalable processors deliver higher memory bandwidth and enhanced frequency management. In comparison to Intel AVX2, Intel AVX-512 is designed to unlock best ever performance.
Intel Speed Select Technology (Intel SST) is a powerful group of capabilities that provide fine grain control over CPU performance that can help lower TCO.
3rd Gen Intel Xeon SP provides boosted Intel SST capabilities, including Intel SST – Base Frequency (Intel SST-BF), Intel SST – Core Power (Intel SST-CP), and Intel SST-Turbo Frequency (Intel SST-TF) capabilities across the majority of Intel Xeon Platinum and Gold processors. 3rd Gen Intel Xeon SP supports the new Intel SST – Performance Profile 2.0 (Intel SST-PP), with extra core count, profile, frequency and power configuration opportunities.
